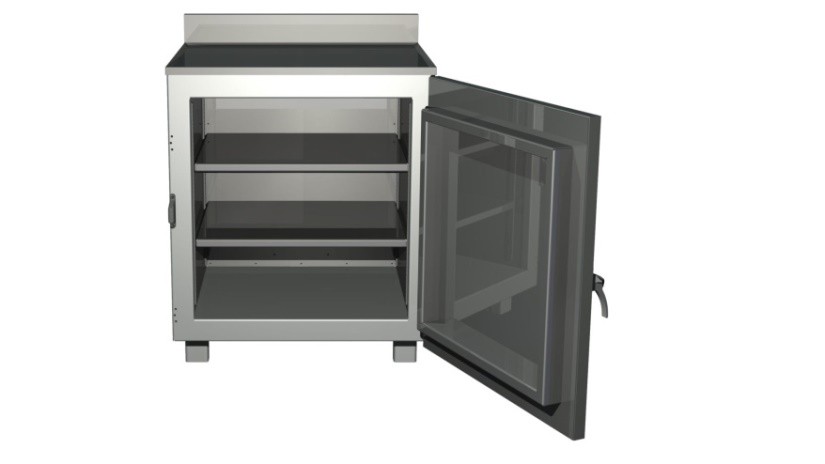

PET Unit Dose Cabinet

Description
Compact 30 inch design for PET hot labs with limited space.
Features
Raised dose calibrator readout mount for easy viewing
Countersunk calibrator chamber mount
Waste Penetration fits shielded sharps container
Supports 511 L-Blocks
Stainless steel countertop and 1” Lead Shielding standard.
Measurements
Overall: 40”H x 30”W x 24” D (101.6 x 76.2 x 60.9 cm)
Interior (excluding positron and shielded waste container: 25 3/4”H x 24 1/2”W x 18 3/4”D (65.4 x 62.2 x 47.6 cm)

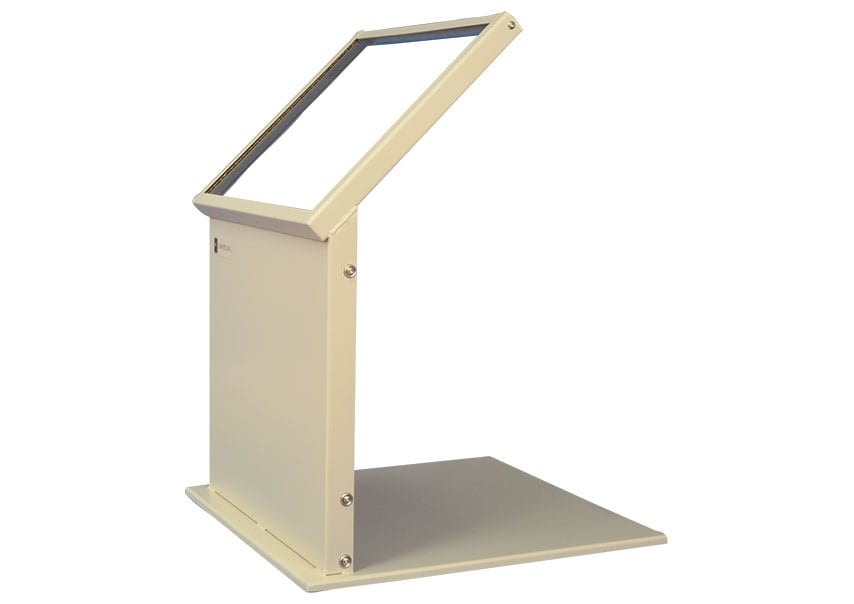

Standard ‘L’ Block Shield
Description
The Standard “L” shield is the favorite as a drawing station and as a storage shield for unit doses with easy access. Side shields or lead brick may be used to form walls when the Standard shield is used to store higher activity or for additional shielding.
Measurements
Dimensions: 26″ h x 18.5″ w x 18.5″ d (66 x 47 x 47 cm)
Weight: 100 lbs. (45.35 kg)
The lead glass of the Standard L Block shield is ¼” thick, which is equivalent to 1/16 inches of lead thickness.

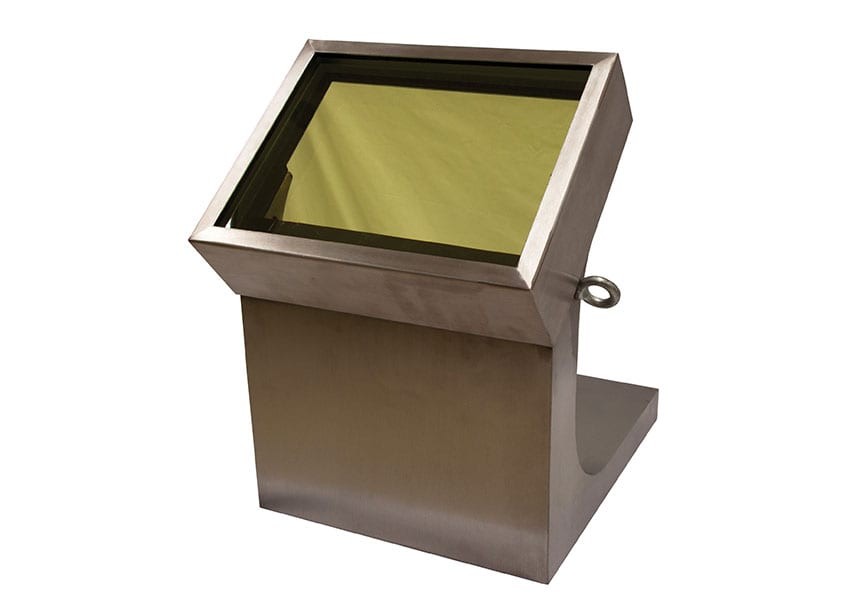

511 Stainless Steel “L” Shield
Description

This shield designed for facilities that prepare and dispense high activity 131I therapy doses. The shield offers excellent protection from beta and gamma radiation and has a fully shielded floor. The lead glass is 3.5 inches thick to shield out the high-energy gamma photons from this radionuclide.
Measurements
Dimensions: 17.64″ h x 13.78″ w 12.2″ d (44.8 x 35 x 40 cm)
Lead Thickness: 1.42” (3.6 cm)
